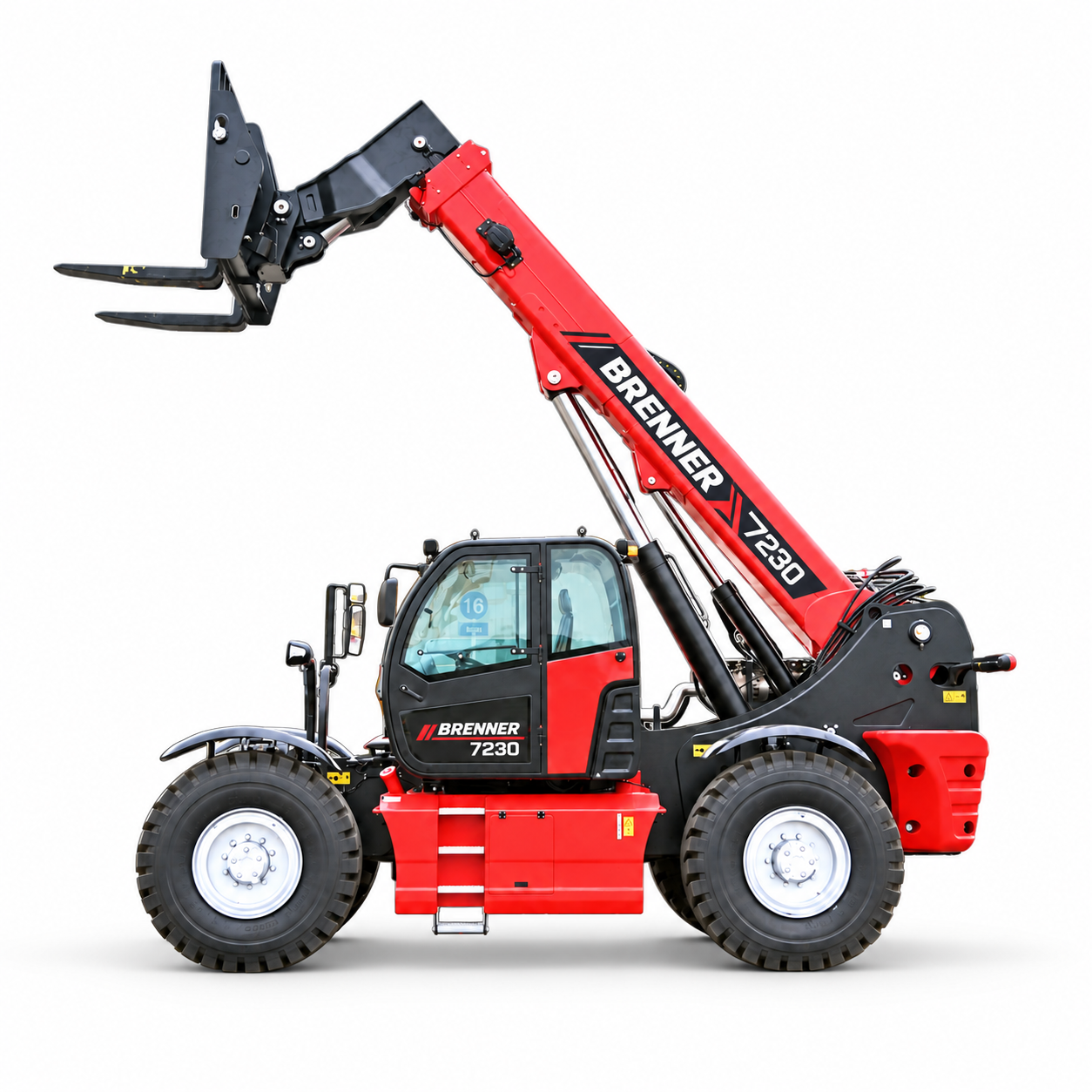

BRENNER 7230 Telescopic handler
BRENNER 7230 Telescopic handler
- Heavy-duty telescopic handler with a 23-ton lifting capacity
- Designed for intensive handling of heavy loads
- Maximum lifting height: 9.8 m
- Maximum horizontal reach: 5.8 m
- Lifting capacity at maximum height: 16 tons
Specifications
| Main Technical Specification | |
|---|---|
| Rated Load, kg | 23000 |
| Operating Weight, kg | 32800 |
| Max.lifting height, mm | 9800±50 |
| Engine type | Diesel |
| Max. travel speed, km/h | 25 |
| Boom lifting time, s | 33 |
| Boom lowering time, s | 20 |
| Telescopic boom extend/retract time, s | 25 / 30 |
| Load center, mm | 900 |
| Lifting capacity at maximum height, kg | 16000 |
| Maximum horizontal reach, mm | 5800 |
| Lifting capacity at maximum reach, kg | 7000 |
| Maximum tractive force, kN | 147 |
| Fork carriage forward/backward tilt time, s | 10 / 8 |
| Overall Dimensions | |
|---|---|
| Length (without forks), mm | 6823±50 |
| Width (Bucket width) | 2850±10 |
| Height (top of cab) | 3058±20 |
| Minimum turning radius (outer tire edge), mm | 5700±50 |
| Wheelbase, mm | 4000±10 |
| Track width, mm | 2315±10 |
| Min.Ground clearance, mm | 435 |
| Rear overhang, mm | 1473±50 |
| Additional Parameters | |
|---|---|
| Tire size | 18.00R25 |
| Lateral frame leveling angle | ±10° |
| Departure angle | 30.8° |
Optional equipment
Quick Change Work Platform
Quick Change Bucket
Quick Change Truss Boom
