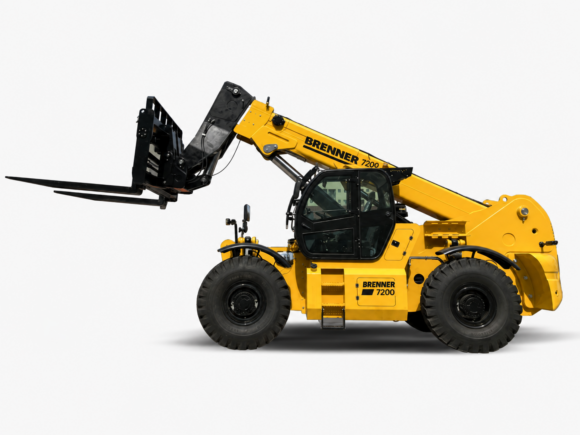

BRENNER 7200 Telescopic handler

BRENNER 7200 Telescopic handler
BRENNER 7200 Telescopic handler

BRENNER 7200 Telescopic handler

    • Heavy-duty telescopic handler with a 20-ton lifting capacity
    • Designed for intensive handling of heavy loads
    • Equipped with a Cummins diesel engine
    • 4×4 all-wheel drive and hydrostatic transmission

Specifications

Main Technical Specification
Rated Load, kg20000
Operating Weight, kg37000
Max.lifting height, mm9955±50
Engine typeDiesel
EngineDF Cummins QSB6.7-C190
Rated engine power, kW (rpm)142 (2200)
Max. travel speed, km/h25
Drive4x4
Load center, mm1200
Maximum horizontal reach, mm4800
Lifting capacity at maximum reach, kg7000
Overall Dimensions
Length (with forks), mm7530±50
Width (Bucket width)2850±10
Height (top of cab)3250±20
Wheelbase, mm3950±10
Front/rear track width, mm2355±10
Min.Ground clearance, mm490
Minimum turning radius, mm5480
Additional Parameters
Tire size18.00R25
Chassis leveling angle±10°
Maximum boom raising angle58°
Maximum boom lowering angle0°

Optional equipment

Quick Change Work Platform

Quick Change Work Platform

Quick Change Bucket

Quick Change Bucket

Quick Change Truss Boom

Quick Change Truss Boom
